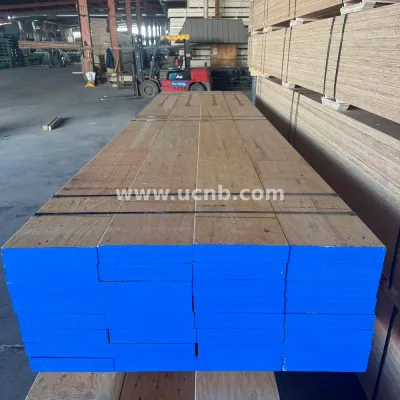

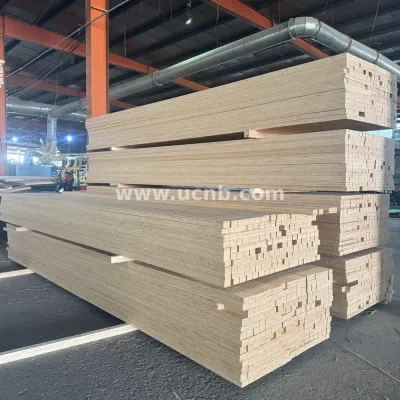

American Standard Structural LVL Beam | 2.0E–2.3E Engineered Wood for Wood Frame Construction
Specifications
American Structural LVL Beam Size Guide

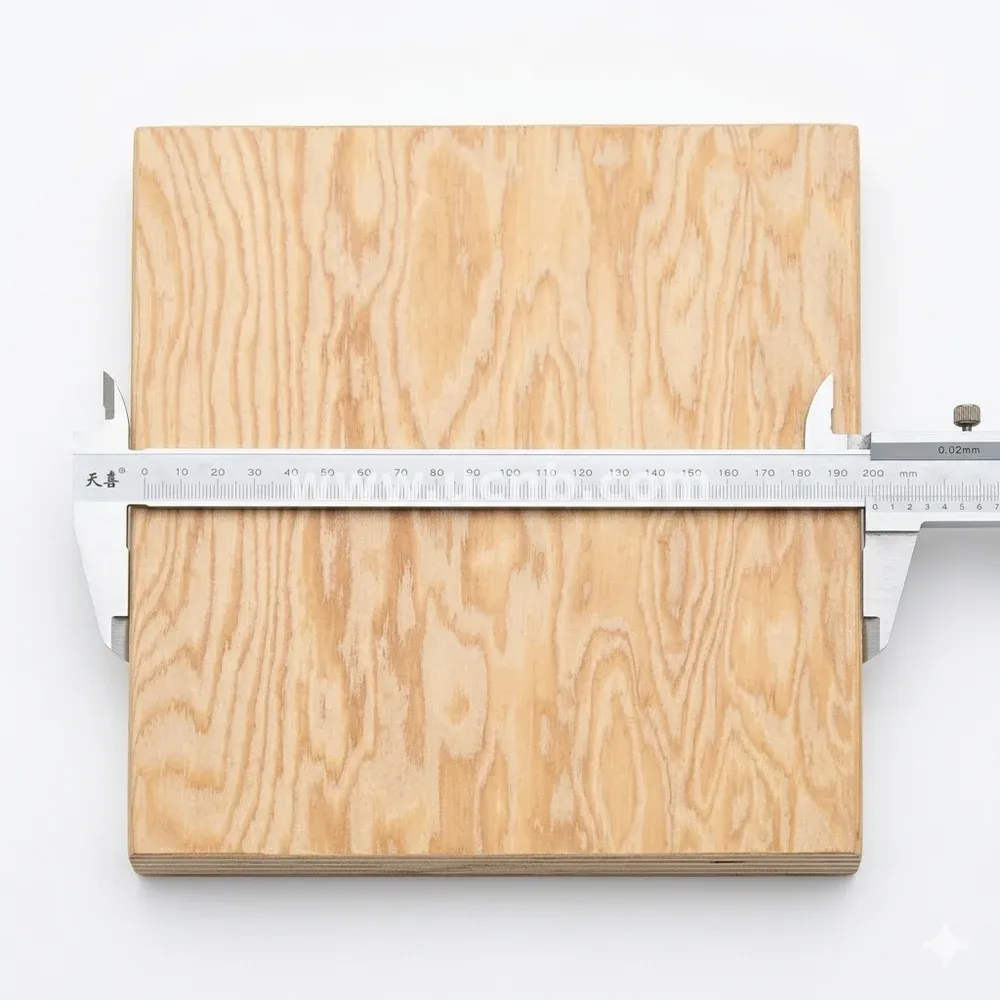

1.Standard Thickness
T(inch) T (mm) Common Use
1-1/2" 38 mm Light beams, multi-ply LVL

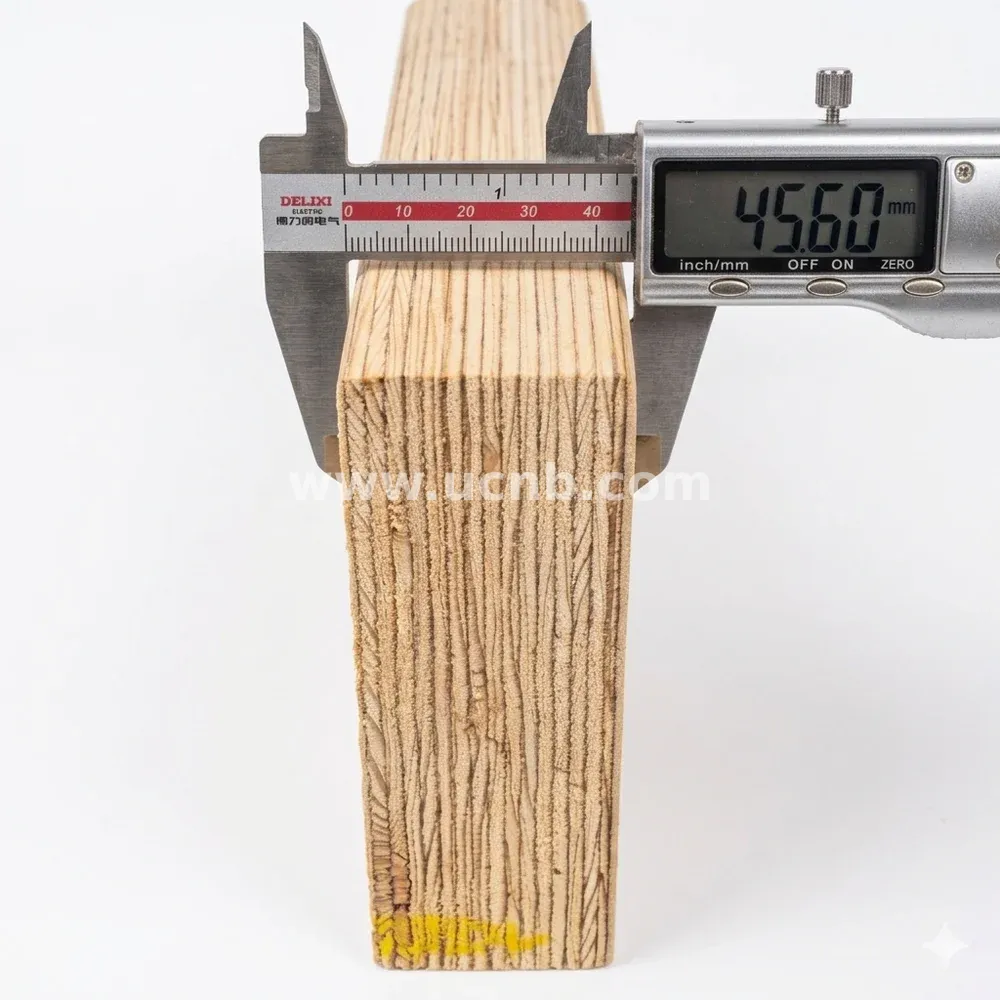

1-3/4" 44.5 mm ⭐ Most common LVL beam

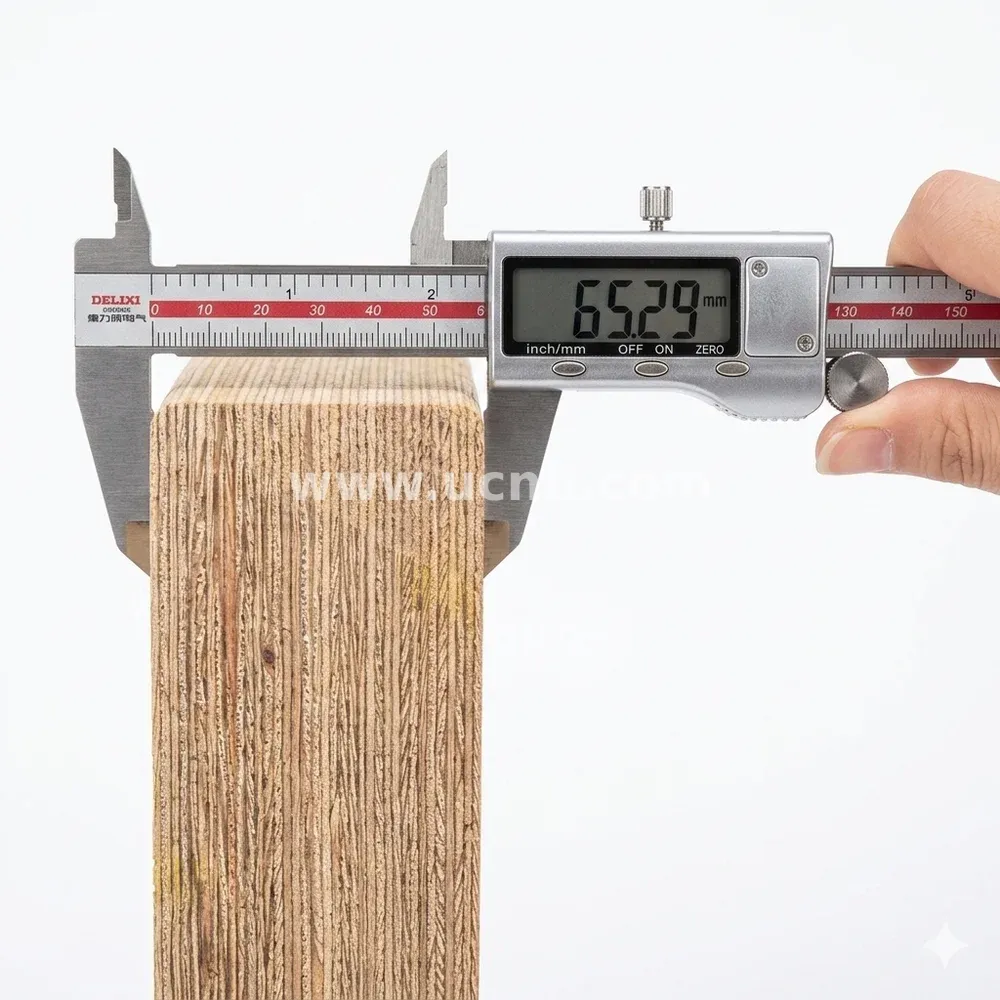

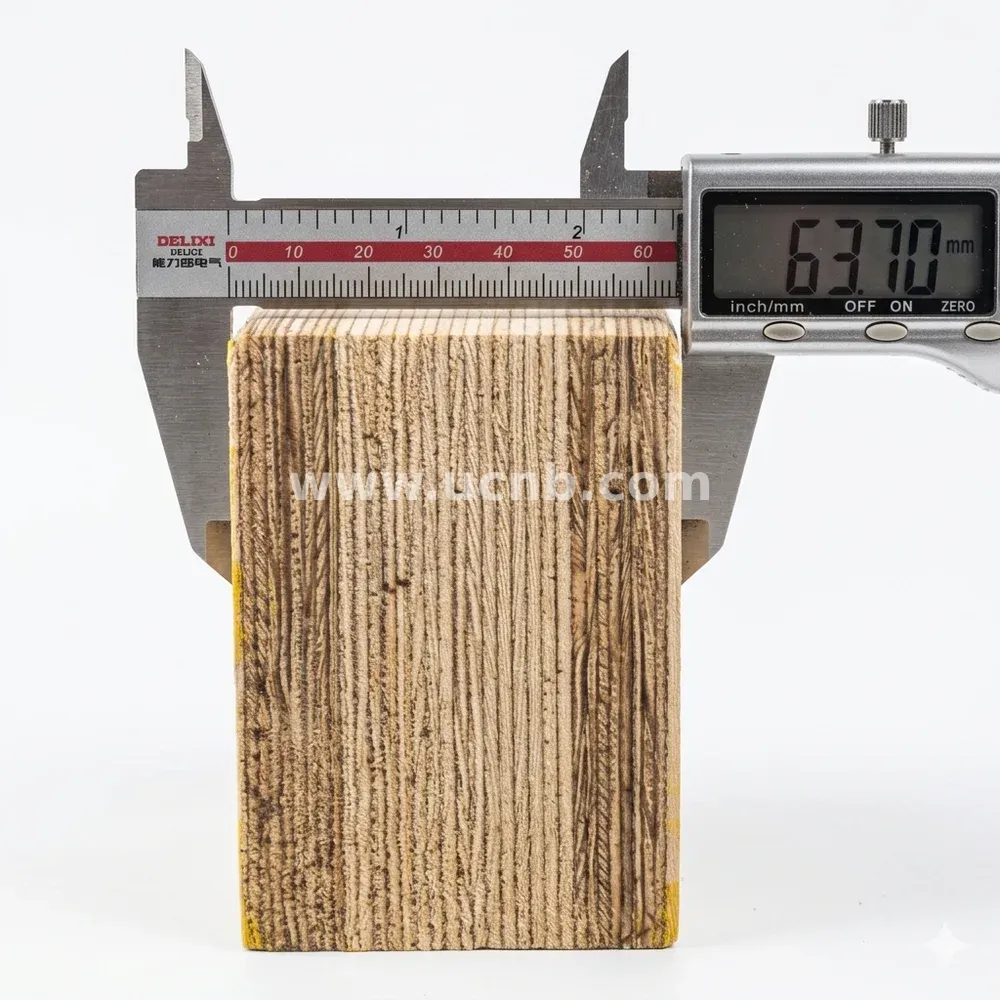

2-1/2" 63.5 mm Heavy structural beam
3-1/2" 89 mm Built-up beam
2. Standard Depth（1-3/4" LVLMost popular sizes）
Size (inch) Metric (mm) Typical Applications
1-3/4" × 5-1/2" 45 × 140 mm Window、Door Header
1-3/4" × 7-1/4" 45 × 184 mm Header, Short Span Beam
1-3/4" × 9-1/4" 45 × 235 mm Floor Beam, Roof Beam
1-3/4" × 9-1/2" 45 × 241 mm Floor Joist, Header
1-3/4" × 11-1/4" 45 × 286 mm Long Span Header
1-3/4" × 11-7/8" 45 × 302 mm ⭐ popular Floor Beam
1-3/4" × 14" 45 × 356 mm Long Span Beam
3.Multi-Ply LVL Beams
Configuration Actual Size Application
2-Ply LVL 3-1/2" × Depth Door/Window Header
3-Ply LVL 5-1/4" × Depth Long Header
4-Ply LVL 7" × Depth Heavy Beam
CustomBuilt-upLVL As required Large Span Structure
4. Standard Length
| Length (ft) | Metric (mm) |
|---|---|
| 8 ft | 2,438 mm |
| 10 ft | 3,048 mm |
| 12 ft | 3,658 mm |
| 14 ft | 4,267 mm |
| 16 ft | 4,877 mm |
| 18 ft | 5,486 mm |
| 20 ft | 6,096 mm |
| 24 ft | 7,315 mm |
| 28 ft | 8,534 mm |
| 32 ft | 9,754 mm |
| 36 ft | 10,973 mm |
| 40 ft | 12,192 mm |
| 48 ft | 14,630 mm |
5. LVL Performance Grade（Modulus of Elasticity）
| Grade | MOE | Common Application |
|---|---|---|
| 1.8E LVL | 1.8 × 10⁶ psi | Standard framing |
| 2.0E LVL | 2.0 × 10⁶ psi | ⭐ common residential LVL |
| 2.1E LVL | 2.1 × 10⁶ psi | High strength beam |
| 2.2E LVL | 2.2 × 10⁶ psi | Long span beam |
| 2.3E LVL | 2.3 × 10⁶ psi | Premium structural beam |
📹 Product Presentation Video

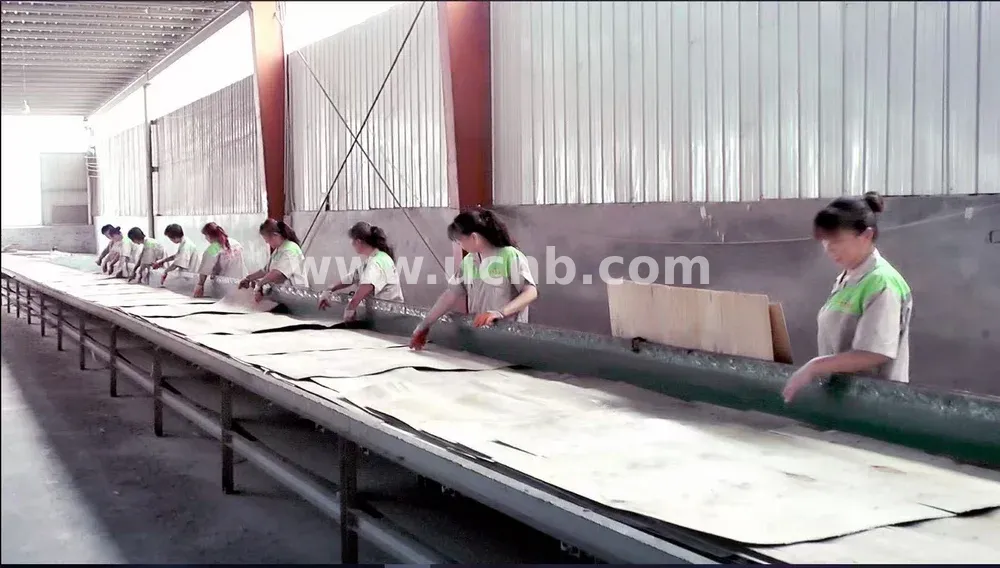

1.Manufacturing Capacity
Advanced production lines
Strict QC system
Large monthly production capacity
On-time delivery
Your Reliable Long-term LVL Supply Partner.
2. Customization
Custom thickness
Custom width
Custom length
Private label
OEM & ODM service
Custom Sizes, Made for Your Projects.
3.Cost Advantage
✔ Competitive pricing
✔ Cost-effective solutions
✔ Better value for money
High Performance LVL at Competitive Prices.
4. Export Experience
15+ years international trading experience
Professional export team
Fast response
Full document support
From production to shipment, we make importing from China easy and efficient.
Q ：What are the main applications of your LVL products?
A：Our LVL is widely used for structural beams, headers, rim boards, wall framing, and scaffolding planks in residential and commercial construction projects.
Q：How do you ensure consistent quality across production batches?
A ：We implement strict quality control throughout the production process, including raw material selection, glue application, pressing, and final inspection. Each batch is tested to ensure consistent strength and moisture control.
Q ：What is your production capacity and delivery time?
A ：We have stable production capacity with flexible scheduling for large-volume orders. Typical lead time is 2–43weeks depending on specifications and order quantity.
Q：How is the load-bearing performance of your LVL products?
A:Our LVL has high strength-to-weight ratio, designed for load-bearing structural applications with stable performance.
Q：Is your LVL prone to warping or deformation?
A:No, LVL is engineered with parallel-layer lamination, which provides excellent dimensional stability and reduces warping or twisting.
